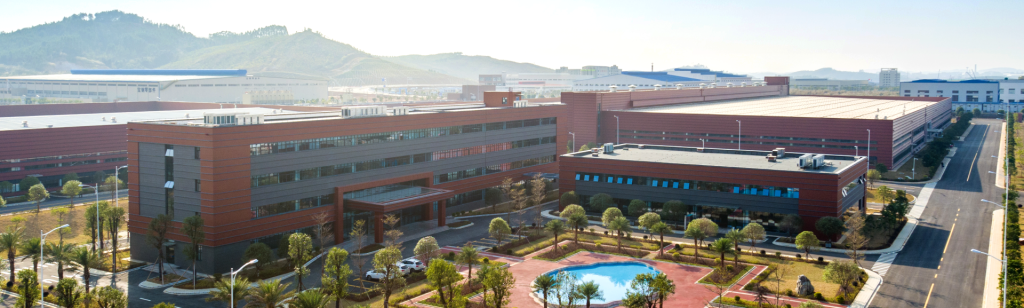

During the Malaysia media visit to the SGM–Wuling Headquarters in early November, one technology stood out above all else: the Wuling MAGIC Battery, the brand’s flagship safety-focused power solution for both its pure electric and hybrid models. Wuling has been pushing hard in the EV and new-energy space, and its battery technology is one of the highlights of the visit.

Despite the playful name, MAGIC is a seriously engineered battery built around one priority above all else: safety. The acronym represents the technology behind it:

M – Multifunction Unitized Structure Technology
A – Advanced Safety
G – Greater Performance
I – Intelligent Management
C – Combustion-Free

Let’s break it all down.

---

M: Multifunction Unitized Structure Technology (MUST)

Aircraft Wing–Inspired Structure

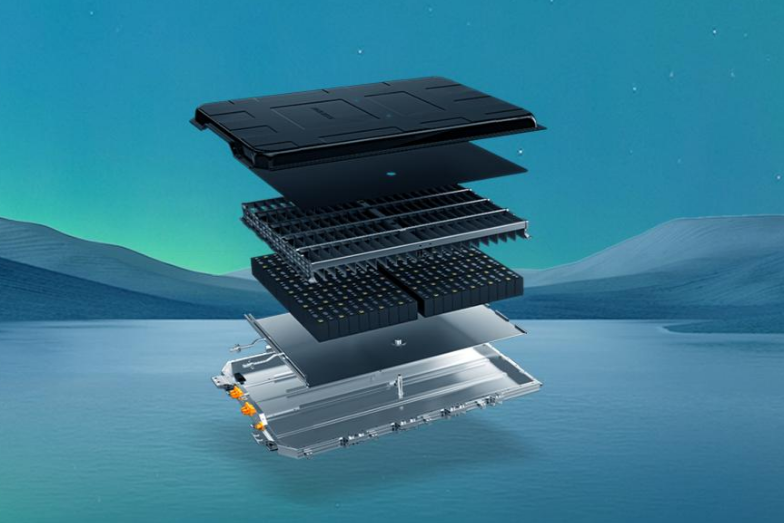

The core of MAGIC is MUST — the Multifunction Unitized Structure Technology — inspired by the structural philosophy of large aircraft wings. By integrating the battery’s structural beams, side panels, and thermal management system into multifunctional components, Wuling creates a pack with:

• A “three-horizontal, six-vertical” internal framework
• Exceptionally high structural rigidity
• Highly efficient thermal management
• Over 60% greater structural strength using the same amount of material

The result is a battery that is both lighter and significantly more impact-resistant.

Built for Real-World Protection

The enclosure includes reinforced horizontal and vertical beams, specifically engineered to protect against:

• Underbody impacts
• Water exposure (e.g., heavy rain, puddles, minor flooding)
• Scrapes and shocks from rough roads

Impact energy is rapidly dispersed across the entire MUST structure, protecting the internal cells from single-point forces.

Lower Maintenance Costs

Most highly integrated battery packs are difficult and expensive to repair. MUST solves the industry challenge by enabling easier removal and maintenance of key modules.

Wuling claims:

• Over 90% reduction in maintenance costs versus comparable battery systems
• Smooth access for component servicing
• Better long-term peace of mind throughout the battery’s lifecycle

---

A: Advanced Safety — Tested Beyond Standards

For 15 years, Wuling has been building a vertically integrated new energy ecosystem, including:

• Its own cell laboratories
• Its own battery system laboratories
• The Guangxi New Energy Vehicle Laboratory, led by eight academicians and described as the industry’s first provincial-level laboratory benchmarked against standards

This deep development pipeline allows Wuling to control safety from raw materials to final certification.

IP68 Protection + Extreme Multi-Condition Testing

Using V-0 grade flame-retardant silicon-based high-temperature sealing materials, the MAGIC Battery prevents heat intrusion, water ingress, and dust accumulation — achieving an IP68 rating.

During development, each battery undergoes combined extreme tests, including:

• Four-way vibration
• Water immersion
• Bottom-impact resistance
• Charge–discharge cycling
• Temperature shock
• High-temperature needle penetration

All test parameters are based on real vehicle usage data, exceeding both national and industry standards.

CATARC Power Battery Quality Challenge

The MAGIC Battery passed the China Automotive Technology & Research Center’s stringent challenge with:

• No shell rupture
• No fire
• No explosion

at both cell and pack levels — one of the rare recognitions in the industry.

---

G: Greater Performance — Power, Efficiency, and Longevity

Wuling highlights five high-performance traits of the MAGIC Battery:

1. High Power — Peak Output Over 300 kW

A combination of:

• High-activity nanoparticles
• Micrometer-sized cathode particles
• Fast-ion composite electrolyte

creates faster lithium-ion transport pathways, enabling strong power delivery.

2. High Energy Density — >165 Wh/kg

By reducing internal shared volume and improving space utilisation by 7%, Wuling boosts energy density by 10%, achieving:

>165 Wh/kg, the best among power-focused LFP cells in its class.

3. High Efficiency — >96% Charge/Discharge Efficiency

Optimisations include:

• ~60% shorter electron transmission path vs blade-type batteries
• An integrated top cover
• Reduced tab length (13 mm)

Together, they deliver over 96% efficiency.

4. Long Lifespan — >6,500 Cycles

A stable anode surface coating, improved electrolyte formulation, and a high-safety system design allow:

• Over 6,500 operational cycles
• Long-term degradation resistance

5. High Safety — Zero Spontaneous Combustion Commitment

Wuling aims for:

“Millions of units sold with zero cases of spontaneous combustion.”

The cell is engineered to resist:

• Fire
• Lithium precipitation
• Internal short circuits
• Leakage

Even under extreme scenarios such as continuous high-temperature exposure or extreme overcharge.

---

I: Intelligent Management — Cloud-Enhanced Dual BMS

The MAGIC Battery uses a two-level BMS:

Vehicle-side BMS

• High-integration, high-precision design
• 24/7 second-level monitoring
• Full life-cycle observation with zero blind spots

Cloud-side AI-BMS

Using 1.6 million+ battery application data points, the cloud system enables:

• 240+ battery safety monitoring strategies
• 80+ fault warning services
• Battery health monitoring accuracy ≤3%

This ensures smarter predictions, better protection, and longer usable life.

---

C: Combustion-Free — Extreme Test Results

Wuling performs tests that exceed national and industry requirements multiple times over. These include both standard test requirements and Wuling’s enhanced versions.

Here is the complete list from the PDF:

Heating Test

• Standard: Heated to 130°C, hold 30 minutes → No fire/explosion
• Wuling test: Heated continuously to 180°C, hold 60 minutes → No fire/explosion

Overdischarge

• Standard: Single overdischarge → No fire/explosion
• Wuling test: 10 overdischarge cycles, capacity & internal resistance remain normal; no leakage/fire/explosion

Overcharge

• Standard: Overcharge at 1.1× Umax → No fire/explosion
• Wuling tests:
  • 10 cycles at 1.1× Umax → no fire/explosion
  • Extreme overcharge at 1.5× Umax → no fire/explosion

External Short Circuit

• Standard: Short circuit at 25°C for 10 minutes → No fire/explosion
• Wuling test: Short circuit at 55°C for 10 minutes → normal voltage, no leakage/fire/explosion

Nail Penetration

• Full penetration with nail left 2 hours → No fire/explosion
• Shallow penetration (1/3 depth) left 2 hours, then 3 cycles of 1C charge/discharge → cell operates normally

Crush/Compression

• Standard: Voltage reaches 0V or deformation 15% → No fire/explosion
• Wuling test: Voltage reaches 0V or deformation 40% → No fire/explosion

Fire Exposure

• Single cell exposed to flame for 40 seconds → No fire/explosion

These results form the technical foundation for Wuling’s combustion-free philosophy and real-world safety promise.— nearly every benchmark by a large margin.

---

Why This Matters for EV Drivers in Malaysia

Malaysian EV owners face high humidity, heavy rain, flooded roads, and plenty of rough surfaces — exactly the conditions Wuling engineered their battery around.

Wuling’s MAGIC Battery directly addresses these challenges through:

• Strong underbody impact tolerance
• High water protection (IP68)
• Heat resistance and flame tests
• Extreme overcharge/short-circuit endurance
• Lower maintenance and easier servicing
• Long cycle life and high monitoring accuracy

It’s an EV battery built with real-world users in mind, not just lab conditions.

Wuling’s MAGIC Battery may sound like marketing fluff, but the engineering underneath is anything but. Batteries may not get the flashy spotlight like motors or screens but this is one of the most aggressively tested LFP battery systems we’ve seen — and if it truly delivers “millions sold, zero spontaneous combustion” that’s a flex the whole EV world will notice.

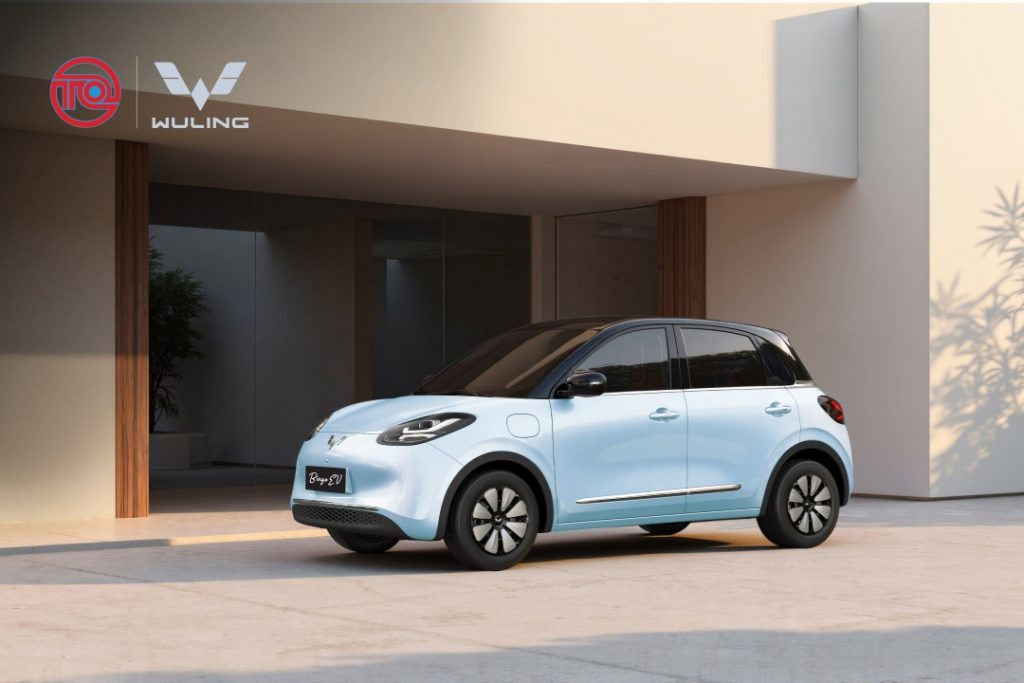

Wuling will launch in Malaysia as TQ Wuling, a partnership between between the Tan Chong group and SGMW (SAIC-General Motors-Wuling). The first model from the brand will be the Bingo EV.
